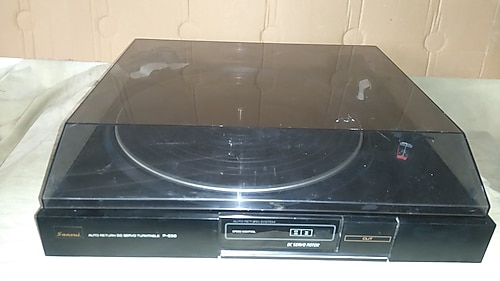

Sansui P-E50 Auto Return DC Servo Turntable.
Years of manufacture: 1980 - 1982
Made in: Japan
Power consumption: 10 W
Dimensions: 430 x 148 x 356 mm (WxHxD)
Weight: 4.3 kg
Connections
Line-Out: Cinch, hard wired to the device
Output voltage standard tone cell SC-37: 3.5 mV, 47 kOhm
Technical Data
Drive: Belt drive
Motor: 4 pole synchronous motor
Speed: 33 / 45 rpm.
Speed fine adjustment:
Synchronous speed fluctuation: 0,06 %.
Noise-to-noise ratio: 60 dB
Rumble sound distance: 60 dB
Turntable:
Diameter: 308 mm
Weight:
Material: die-cast aluminium
Operating mode: automatic limit stop
Tonearm: S-shaped, statically balanced
Effective length: 220 mm
Overhang: 14,5 mm
Tracking misalignment angle: ± 1.5 °
Contact pressure: min. 1 g, recommended 4 - 9 g
Pickup MM: SC-37
Frequency response: 20 - 20'000 Hz
Channel separation: 25 dB
Optimal contact pressure: 2,5 g
Needle: 0.5 mil diamond
